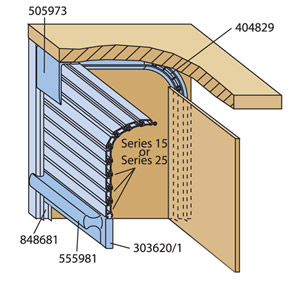

Conventional System

Conventional System Design to accommodate furniture for convenience of our clients, the shutter system operates by drawing its slats vertically from both front and back to balance its weight. This concept is kept for light weight applications.

Features

  • Custom made to all cabinet dimensions
  • Recommended dimension: (w) 600 x (h) 900
  • Weight balanced by door slats

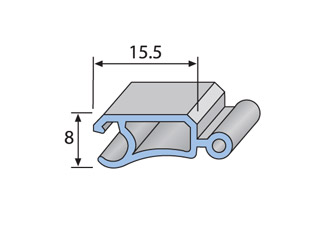

Series 15

Series 25

55 5605 Profile

Length : 2500mm
Finish : 1779 Mat Silver
    1783 Stainless Steel

55 0006 Profile

Length : 2500mm
Finish : 1779 Mat Silver
    1783 Stainless Steel


55 6187 Joint Profile

Length : 2500mm
Finish : 1779 Mat Silver
    1783 Stainless Steel

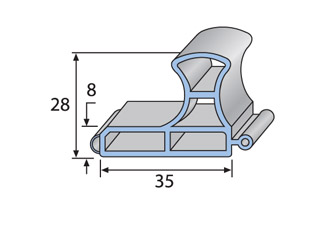

55 5981 Handle Profile

Length : 2500mm
Finish : 1779 Mat Silver
    1783 Stainless Steel

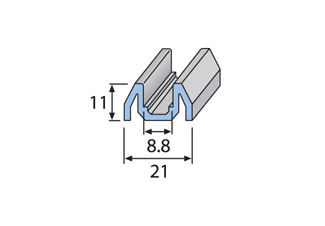

84 8681 Guiding Rail

Length : 2500mm
Finish : 1779 Mat Silver
    1783 Stainless Steel

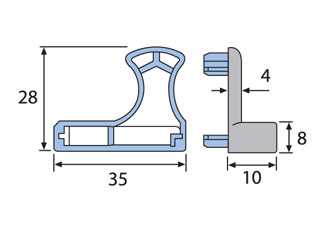

30 3620/1 Left Right End Cap

Finish : 6136 Mat Silver
    8140 Mat Nickel

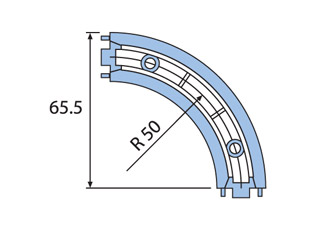

40 4829 Corner

Finish : 6136 Mat Silver
    6783 Stainless Steel
    8167 Light Grey


55 6098 Lock Section Profile

Length : 2500mm
Finish : 1779 Mat Silver
    1783 Stainless Steel

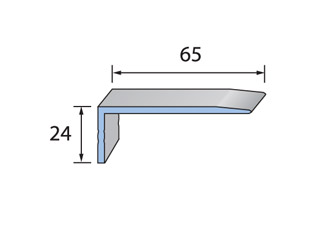

55 5973 Fascia Profile

Length : 2500mm
Finish : 1779 Mat Silver
    1783 Stainless Steel

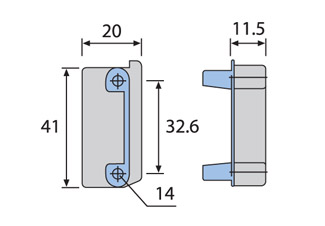

30 3722/3 Left Right End Cap

Finish : 8333 Mat Silver
    8140 Mat Nickel
